Onsite infrastructure guide

The following guide is based on the setup we perform for CTF events that for some reason or the other cannot work through a cloud infrastructure or simply require snappy access to the targets.

In such cases we opt to provide our own pre-configured servers to host and run the CTF on any location that has electricity.

This allows participants to compete at whatever speeds their LAN can provide.

The setups we deploy in such events vary on the number of participants and the specific requirements and limitations imposed.

Basic Setup

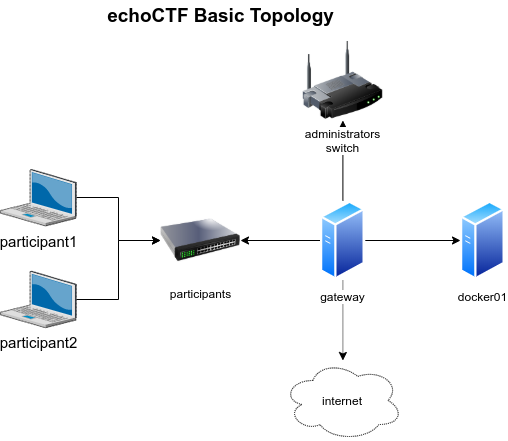

The general topology we follow for our setups starts with an OpenBSD gateway/vpn server and a Debian docker server, as illustrated below.

This basic setup assumes 50 local participants with 10 to 20 targets.

The hardware specifications for the servers vary but for a small event the following should be more than enough: * RAM: 32GB * CPU: Intel(R) Xeon(R) CPU E5345 @ 2.33GHz * Storage: 160GB SSD

Gateway: The gateway runs all applications needed, except for the docker containers. It has a Quad Gigabit ethernet adapter with 3 ethernet interfaces being used by the setup and the fourth one if we also need to provide internet access to the participants through our gateway.

Each of the applications run on their own interface, user id, chroot, packet filtering rules and service control.

Players connect to the participants switch and access the frontend and openvpn.

Event managers connect to the administrators switch and can access the backend and SSH to the gateway. Unrestricted access is provided to system administrators to be able to access the backend infrastructure as well as any other available resource.

NOTE: Only our support engineers are allowed to connect to the administrators switch for the events we develop and deliver.

Docker01: The docker01 system connects with a crossover cable to the gateway.

Increased requirements

As the needs increase we adapt the above setup based on the specifics of the requirements.

The easiest route is to gradually increasing the hardware specifications for the gateway and docker server. With this approach we have been able to provide infrastructure for an event of 300 participants with 100 targets.

The hardware specifications for the servers in that case were as following * Gateway OpenBSD - RAM: 32GB, - CPU: Intel Core i7 9700K @ 3.60GHz - Storage: 160GB SSD * Docker Debian - RAM: 196GB - CPU: Intel(R) Xeon(R) CPU E5-2630 v4 @ 2.20GHz - Storage: 500GB SSD

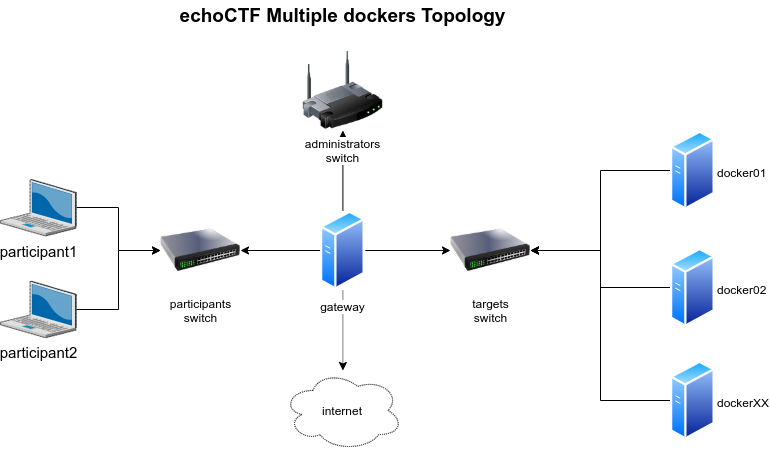

When the option to increase the hardware specs is no longer viable, we switch into splitting services into multiple servers starting with the addition of new docker servers.
